LTD63 / LTD80 Construction Suspended Platform / customized suspended scaffolding / gondola platform
Rope Suspended Platform (SRP), also known as Gondola (or cradle or working platform) is being widely used in India for performing various applications at heights for jobs like painting, external wall plastering, installing glass facades, maintenance of external surfaces etc. Most of the contractors have replaced their unsafe scaffolding with safe and reliable Rope Suspended Platforms
suspended platform is motor driven climbing machinery mainly used for the exterior wall construction, decoration and renovation of high-rise buildings and multi-storey buildings. More specifically, cement coating, wainscoting, curtain wall installing, painting, varnishing, cleaning, maintenance, and other tasks can all be completed. It is also suitable for other engineering work on large tanks, bridges, and dams.
Parameter
| LTD80 Rope Suspended Platform Safety Hot Galvanized Steel SRP |
| Item | ZLP630 | ZLP800 |
| Rated load | 630kg | 800kg |
| Lifting speed | ~9.5m/min | ~8.5m/min |
| Platform size(L*W*H) | (3*2000mm)*700mm*1180mm | (3*2500mm)*700mm*1180mm |
| Suspension Mechanism | Rated exerted length of front beam | 1.1m~1.5m |
| Terrain clearance of front beam | 1.45m~1.75m |
| Hoist | Type | LTD63 | LTD80 |
| Power | 1.5Kw | 2.0Kw |
| Voltage | 220v/380V/415v | 220v/380V/415v |
| Speed | 1400n/min | 1400n/min |
| Braking torque | 15N.M | 15N.M |
| Safety lock | Type | LS30 |
| Angle of tilted locking rope | 3°~8° |
| Allowable impact force | 30KN |
| Wire rope | Type | 8.3MM | 8.3MM/8.6MM/9.1MM |
| Cable line | Type | 3*2.5+2*1.5YC-5(one picec) |
| Counterweight | Type | Cement / iron cast |
Five main structure:
(1) Platform
(2) Hoist Assembly
(3) Satety Device
(4) Electric System
(5) Suspension Mechanism
Detailed of each parts:

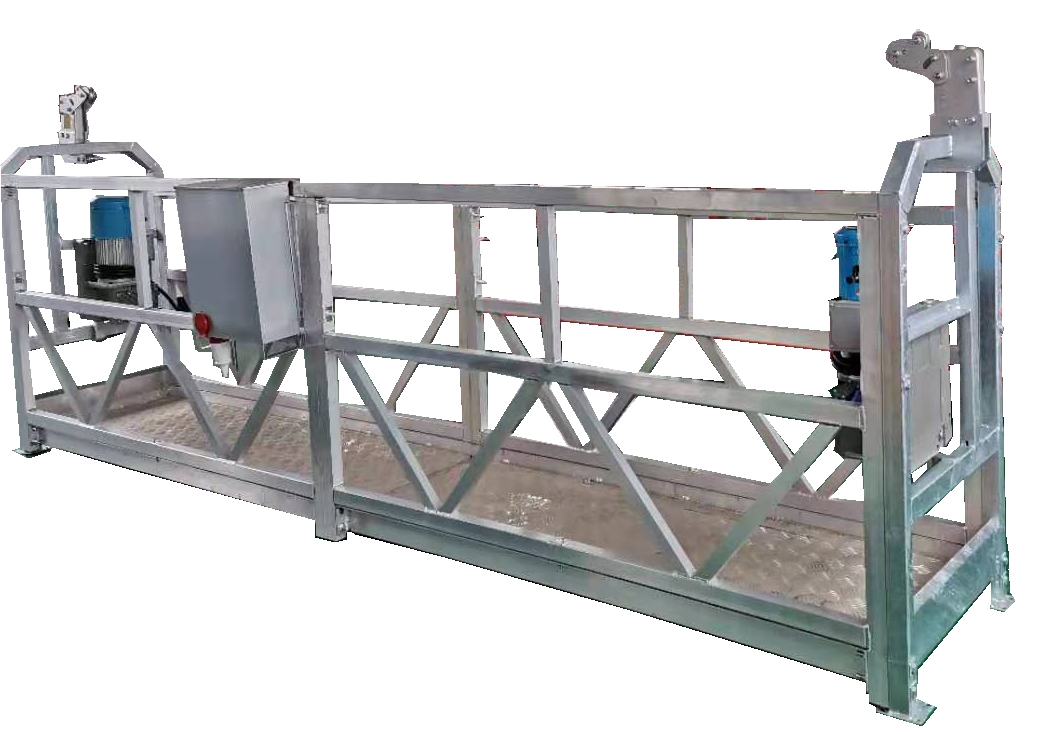

1. Platform(basket): Steel (painted or hot galvanized) or Aluminum Alloy
2. Suspension Mechanism: Steel (painted or hot galvanized)

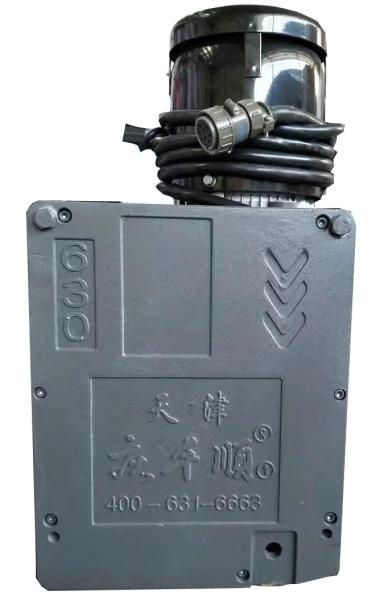

3. Electric hoists: LTD63/LTD80
4. Safety Lock: LS30
5. Electric control box: Along with hoists
6. Steel wire rope: 8.3mm ,8.6mm or 9.1mm
7. Electric cable: 3*2.5+2*1.5
8. Counterweights: Cement , cement with steel cover & Iron counterweight
9 Spare parts
Features for Aluminum platform:
No need painting or galvanizing on surface;
Oxygen membrane on the surface, rust-proof, anti-corrosion.
Light weight, 65% lighter than the same model of steel one.
Load effiency increased, anti-subversion ability improved.
Easy to install& operate.
Good look, with bright silver gray color
Features for Hot galvanized steel platform.
With good outlook;
Anti corrosion.
Lower price than Aluminum platform.
PACKAGE & SHIPPING
Hoist and safety lock are packed in one plywood case, size 610*310*340mm;
Control box/ control panel is packed in a plywood case,size 570*440*270mm;
Other components are fastened by rope and then by pallet
20GP can load 8 sets with counter weight, 10~12 sets without counter weight
01.Which payment terms can we accept ?
Normally we can accept T/T, L /C, Western Union, sometimes D/P
1.T/T-----30% down payment is required in advance , 70% balance shall be settteled before
shipment or against the copy of original B/L .
2. L/ C----A 100% irrevocable L /C without "soft clause" can be accepted
02.How long will our price be valid ?
1.The rate of Usd dollars-----RMB varies significantly according to the intemational currency
exchange rates.
2.The cost changed, because of the increasing of labor and material cost
03.What logistics ways can we work for shipment?
1.Mostly we will go by sea, to all main continents such as South America, UAE, India etc by
container.
2.For neiberhood countries of China, such as Russia, we can ship product by train or road.
3.For light spare parts in urgent demand, we can ship them by international service such as
DHL,TNT, UPS or FEDEX.
