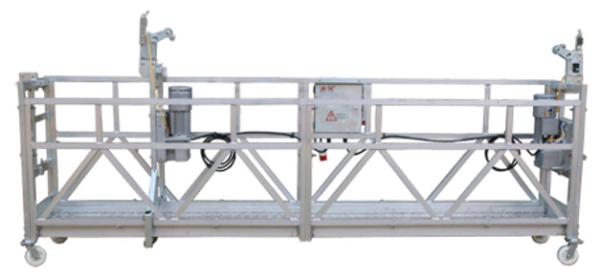

ZLP630 6M ALUMINUM GONDOLA SUSPENDED PLATFORM FOR CLEANING
Suspended platform are designed and constructed in modular form,so it could be mounted in any size from 2m to 8m.
Welding of support structure is made of quality steel profiles
Connection of individual parts of structure is made with nuts and bolts in each unit.
Each platform is equipped with wheels for easy movement around construction sites.
Five main structure:
(1) Platform
(2) Hoist Assembly
(3) Satety Device
(4) Electric System
(5) Suspension Mechanism
Technical Parameters :
| Specifications |
| Type | ZLP630 | ZLP800 | ZLP1000 |
| 1.Rated Load | 630kg | 800kg | 1000kg |
| 2.Lifting speed | 9.3m/min | 8.5m/min | 8.3m/min |
| 3.Lifting height | 100m | 100m | 100m |
| 4.Hoist | LTD63 | LTD80 | LTD80sdrive |
| 4.1 Voltage-3Phase | 380V(415V/220V) | 380V(415V/220V) | 380V(415V/220V) |
| 4.2 Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| 4.3 Power | 1.5kw*2 | 2kw*2 | 2.2kw*2 |
| 5.Safety Lock | LS30 | LS30 | LS30 |
| 6.Electric Control Panel Components | Schneider or CHNT | Schneider or CHNT | Schneider or CHNT |
| 7.Platform Sise (LxWxH) | (2+2+2)x0.69x1.18m | (2.5+2.5+2.5)x0.69x1.18m | (2.5+2.5+2.5)x0.69x1.18m |
| 8.Steel Wire Rope | 4pcsx100m 4x31SW+FC D=8.3mm | 4pcsx100m 4x31SW+FC D=8.3mm | 4pcsx100m 4x31SW+FC D=8.6mm |
| 9.Special Cable | (3x2.0+2x1.0mm2)100m | (3x2.0+2x1.0mm2 )100m | (3x2.0+2x1.0mm2)100m |
| 10.Counter Weight | 1000kg | 1000kg | 1000kg |
| Qty of 20" Container | 10 sets | 10 sets | 10 sets |
1. Platform(basket): Hot galvanized steel / Aluminum
2. Suspension mechanism --Hot galvanized steel
3. Safety lock --Anti -proofing
4. Control Panel ---CHINT
5. Motor --LTD63 220V / 380V 415V 50/60HZ 3PHASES
01.Which payment terms can we accept ?
Normally we can accept T/T, L /C, Western Union, sometimes D/P
1.T/T-----30% down payment is required in advance , 70% balance shall be settteled before
shipment or against the copy of original B/L .
2. L/ C----A 100% irrevocable L /C without "soft clause" can be accepted
02.How long will our price be valid ?
1.The rate of Usd dollars-----RMB varies significantly according to the intemational currency
exchange rates.
2.The cost changed, because of the increasing of labor and material cost
03.What logistics ways can we work for shipment?
1.Mostly we will go by sea, to all main continents such as South America, UAE, India etc by
container.
2.For neiberhood countries of China, such as Russia, we can ship product by train or road.
3.For light spare parts in urgent demand, we can ship them by international service such as
DHL,TNT, UPS or FEDEX.
